Phone: +30 210 412 9441| Weight |
1 , 198 kg |
|---|---|
| Castor type |
Swivel with brake |
| Fitting Type |
Plate Fitting |
| Wheel Material |
Rubber |
| Wheel centre / Rim |
Nylon 6 |
| Wheel Diameter |
150mm |
| Thread Width |
40mm |
| Bearing Type |
Self - Lubricating Nylon Bush |
| Wheel Hole |
15mm |
| Hub Width |
50mm |
| Plate Size |
100mm x 85mm |
| Bolt Hole Spacing |
80mm x 60mm |
| Bolt Hole |
8 , 5mm x 12mm |
| Offset (mm) |
45mm |
| Overall Height |
181mm |
| Load Capacity |
120kg |
| Hardness |
Sh A 83° |
| Floor condition |
Asphalt , Carper , Wood , Stoneware , Grid , Concrete |
| Temperature Resistance |
-20°C/+80°C |
| Serie |
112BGRX |
| Wheel & Castors |
Castor |
| Inox |
Yes |
| Unit Weight |
1.198Kg |
| Applications |
Food Industry , Food Industry - Hotel Equipment |

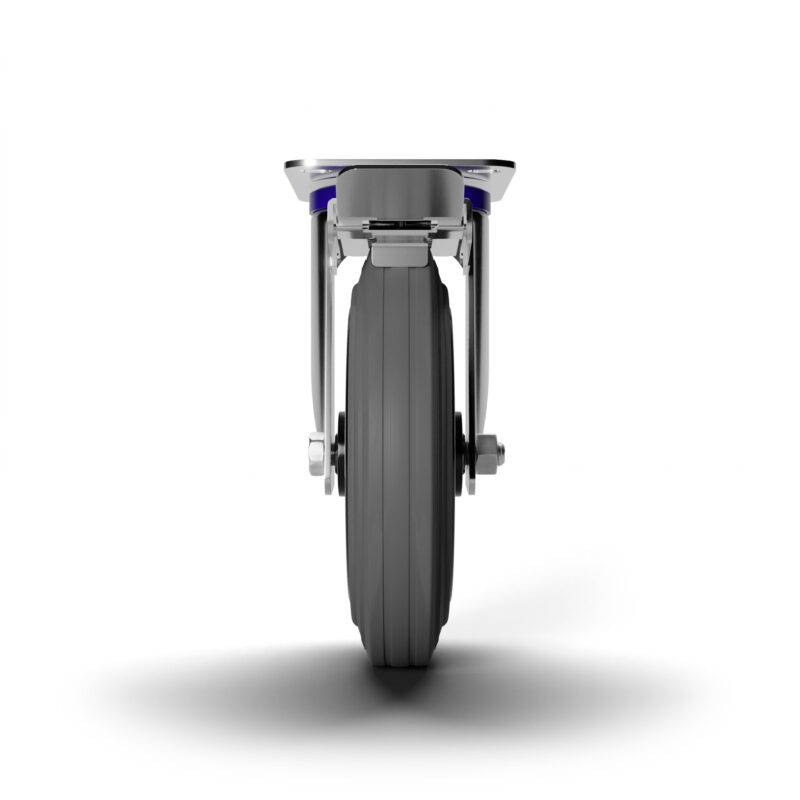

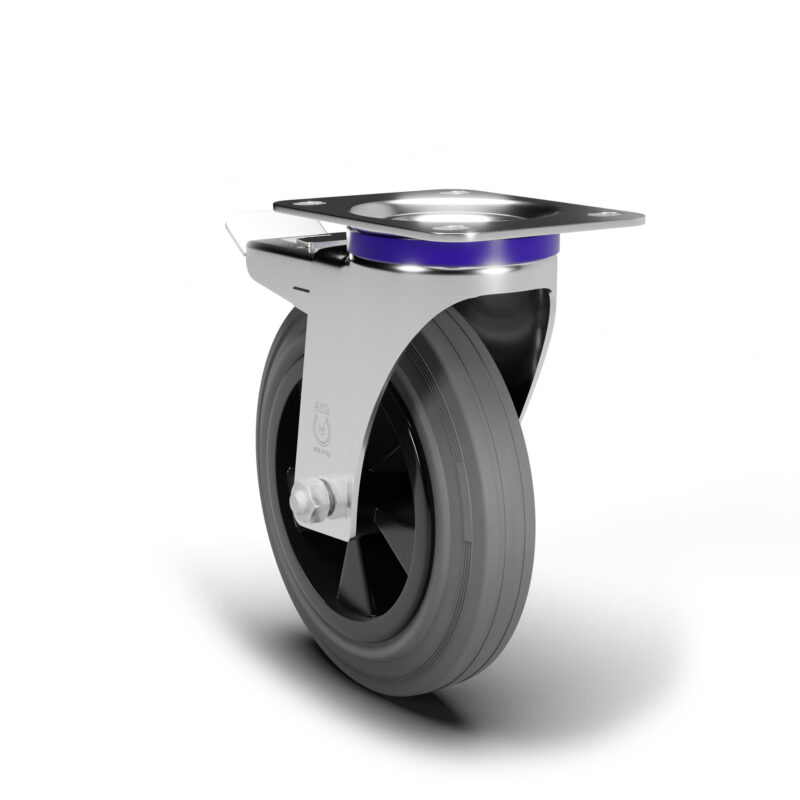

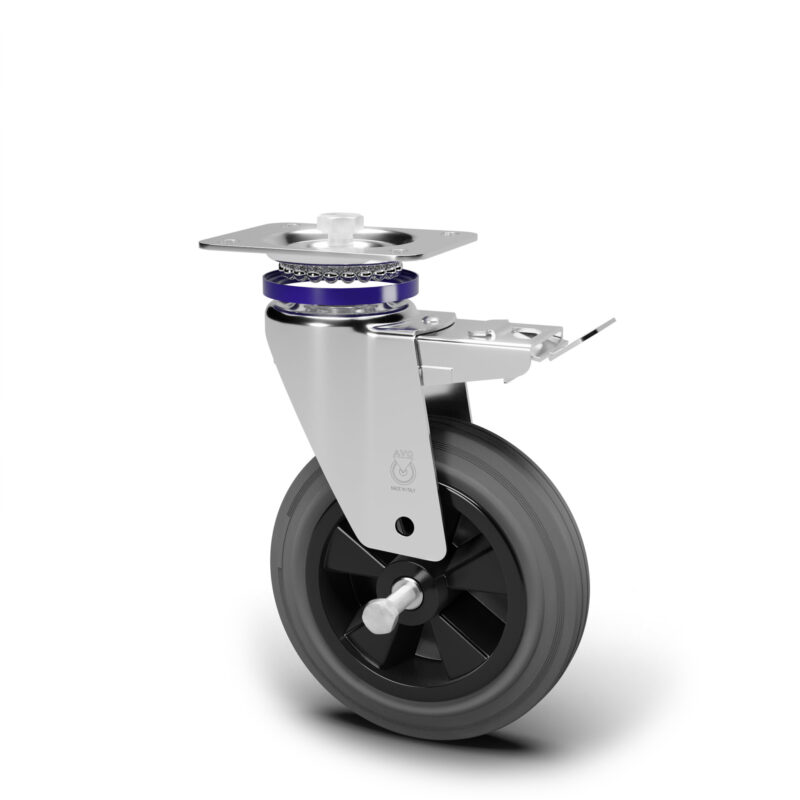

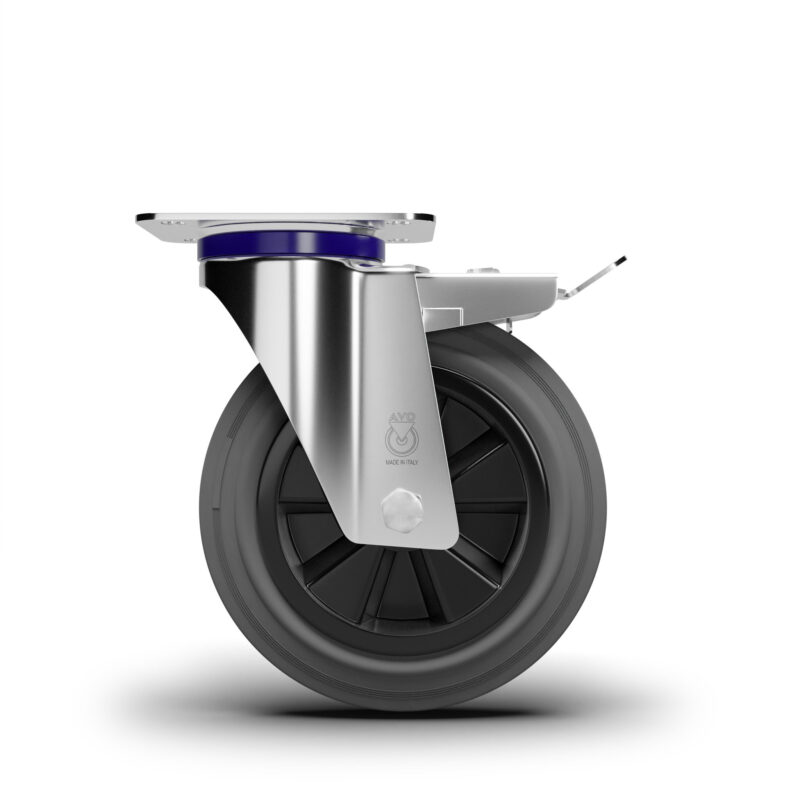

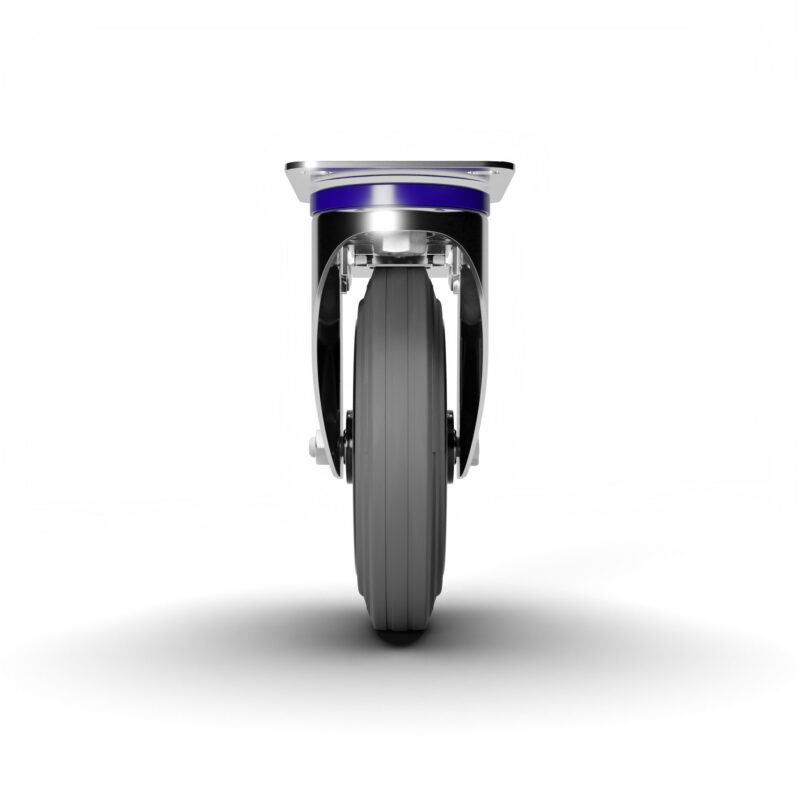

CASTOR Ø150MM SWIVEL AND BRAKE INOX RUBBER Q
28,98€ ex VAT
Wheel coated with heavy duty solid rubber (Soft Elastic), very high operational comfort, low-noise operation, very good floor preservation, non-marking, very good chemical connection with the rim. Rim of high quality, impact-resistant nylon. Hub on plain bore. Medium duty castor in pressed stainless steel INOX AISI 304, turning on double rim of balls AISI 304. Assembled with self-locking nut.
Wheel coated with heavy duty solid rubber (Soft Elastic), very high operational comfort, low-noise operation, very good floor preservation, non-marking, very good chemical connection with the rim. Rim of high quality, impact-resistant nylon. Hub on plain bore. Medium duty castor in pressed stainless steel INOX AISI 304, turning on double rim of balls AISI 304. Assembled with self-locking nut.
