Phone: +30 210 412 9441| Castor type |
Swivel |
|---|---|
| Fitting Type |
Plate Fitting |
| Wheel Material |
Polyurethane |
| Wheel centre / Rim |
Cast Iron |
| Wheel Diameter |
175mm |
| Thread Width |
40mm |
| Bearing Type |
Two Ball Bearings |
| Wheel Hole |
20mm |
| Hub Width |
40mm |
| Plate Size |
140mm x 110mm |
| Bolt Hole Spacing |
105mm x 80mm |
| Bolt Hole |
11mm x 16mm |
| Offset (mm) |
55mm |
| Overall Height |
208mm |
| Load Capacity |
300kg |
| Hardness |
Sh A 91° |
| Floor condition |
Asphalt , Carper , Wood , Stoneware , Grid , Concrete |
| Temperature Resistance |
-20°C/+80°C |
| Ball Bearing Seat |
47mm x 14mm |
| Serie |
15 |
| Wheel & Castors |
Castor |
| Inox |
No |
| Unit Weight |
0Kg |
| Applications |
Storage - Logostic - Transpotation , Industry |

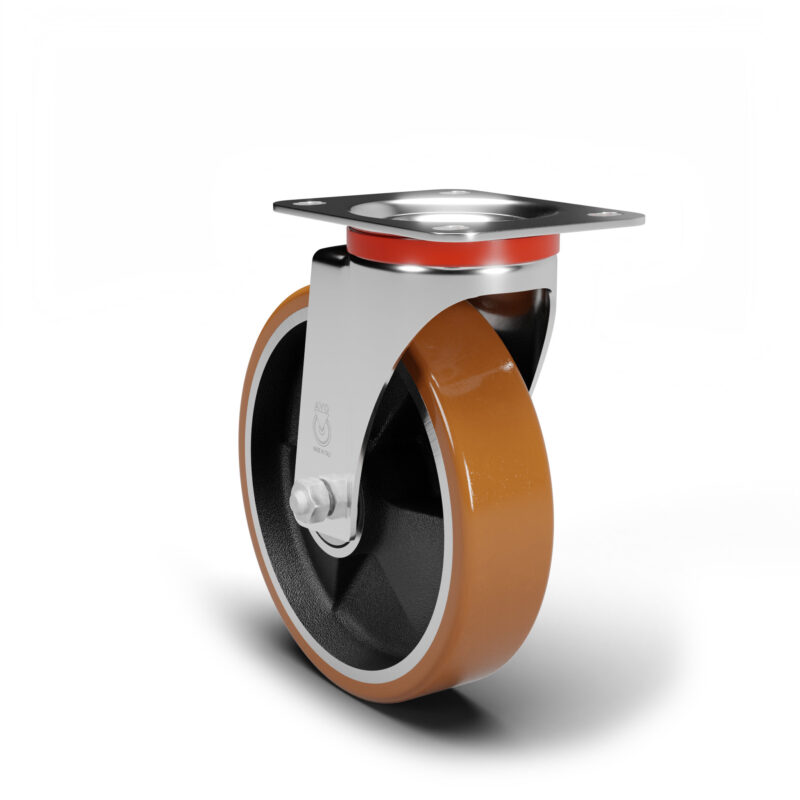

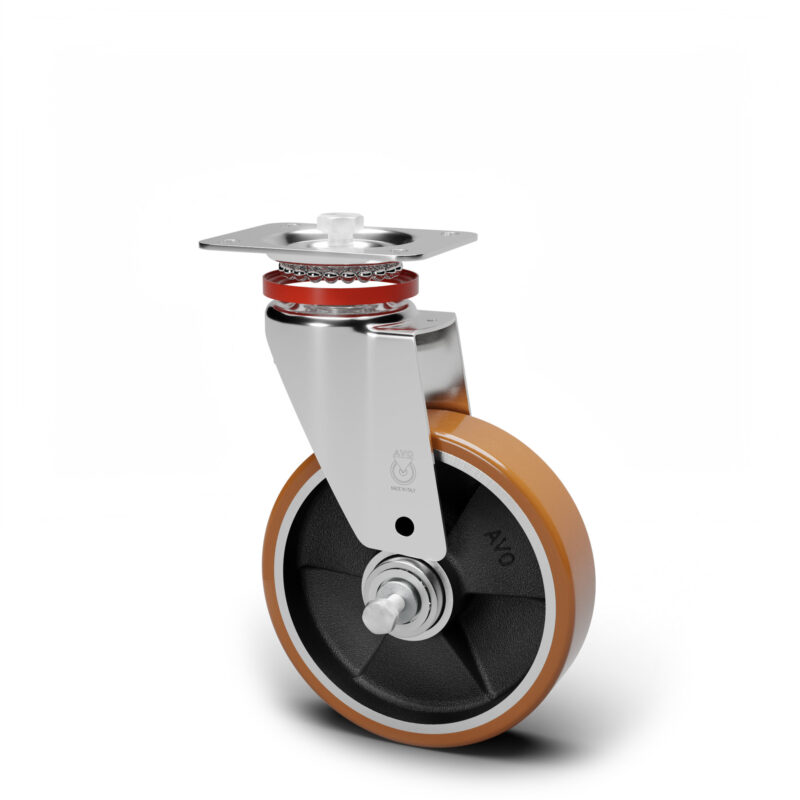

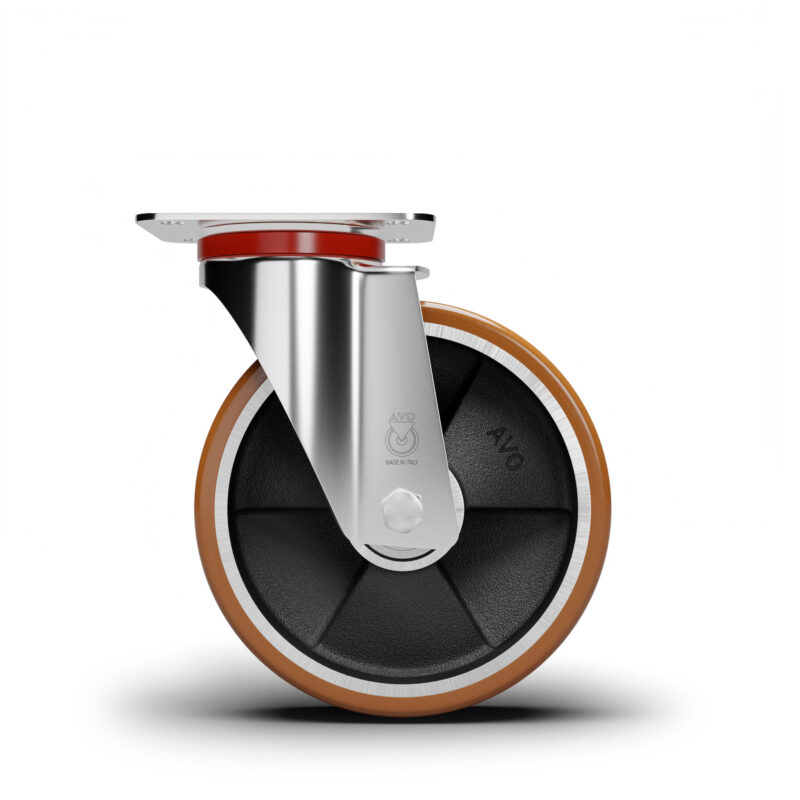

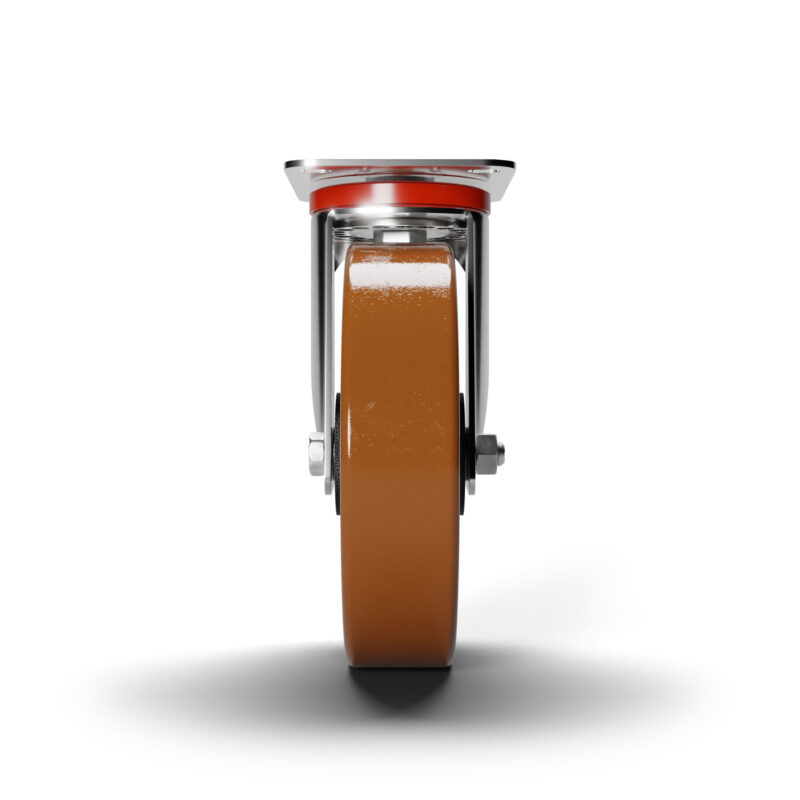

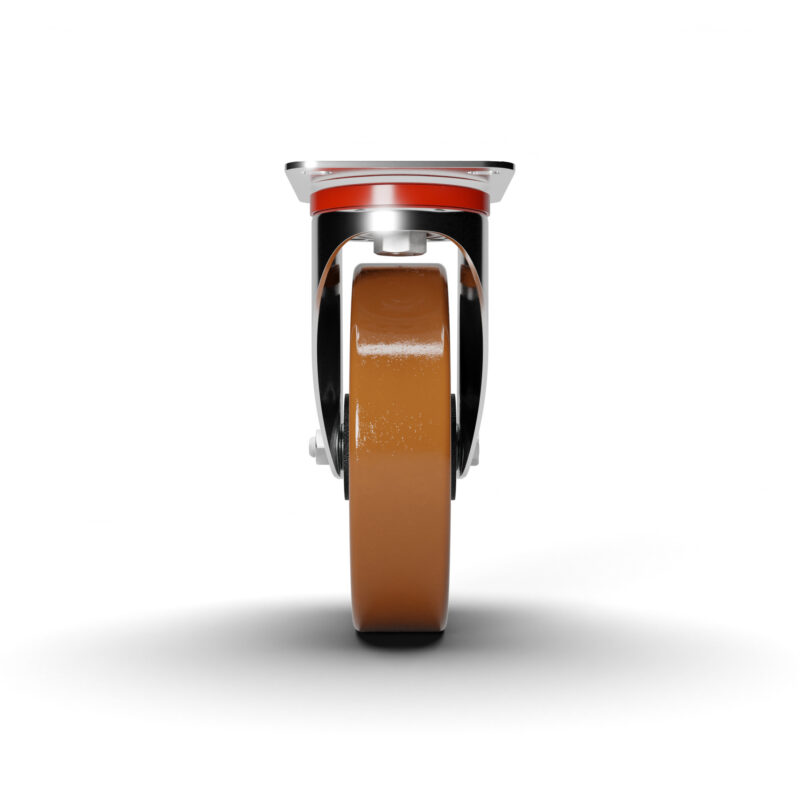

CASTOR Ø175X40MM SWIVEL 2R Q POLYURETHANE
55,42€ ex VAT
Wheel coated with polyurethane, low-noise operation, low rolling resistance, good floor preservation, high abrasion resistance, high cut and tear propagation resistance, non-marking, very good chemical connection with the rim. Rim of mechanical cast iron. Hub on shielded ball bearings with central spacer. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut and plastic dust protection.
