Phone: +30 210 412 9441| Weight |
1 , 49 kg |
|---|---|
| Castor type |
Swivel |
| Fitting Type |
Plate Fitting |
| Wheel Material |
Cast Iron |
| Wheel centre / Rim |
Cast Iron |
| Wheel Diameter |
100mm |
| Thread Width |
30mm |
| Wheel Hole |
12mm |
| Hub Width |
40mm |
| Plate Size |
100mm x 85mm |
| Bolt Hole Spacing |
80mm x 60mm |
| Bolt Hole |
9mm x 12mm |
| Offset (mm) |
36mm |
| Overall Height |
135mm |
| Load Capacity |
250kg |
| Hardness |
180-220HB |
| Floor condition |
Asphalt , Concrete |
| Temperature Resistance |
-40°C/+500°C |
| Serie |
114 |
| Wheel & Castors |
Castor |
| Inox |
No |
| Unit Weight |
1.49Kg |
| Applications |
Industry , Food Industry , Furniture |
CASTOR Ø140MM BOLT HOLE GQ
0,00€ ex VAT
WHEEL Ø180X45X58Ø20MM 2R GREY RUBBER
0,00€ ex VAT
CASTOR Ø100MM SWIVEL G (HD)
19,20€ ex VAT
ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ

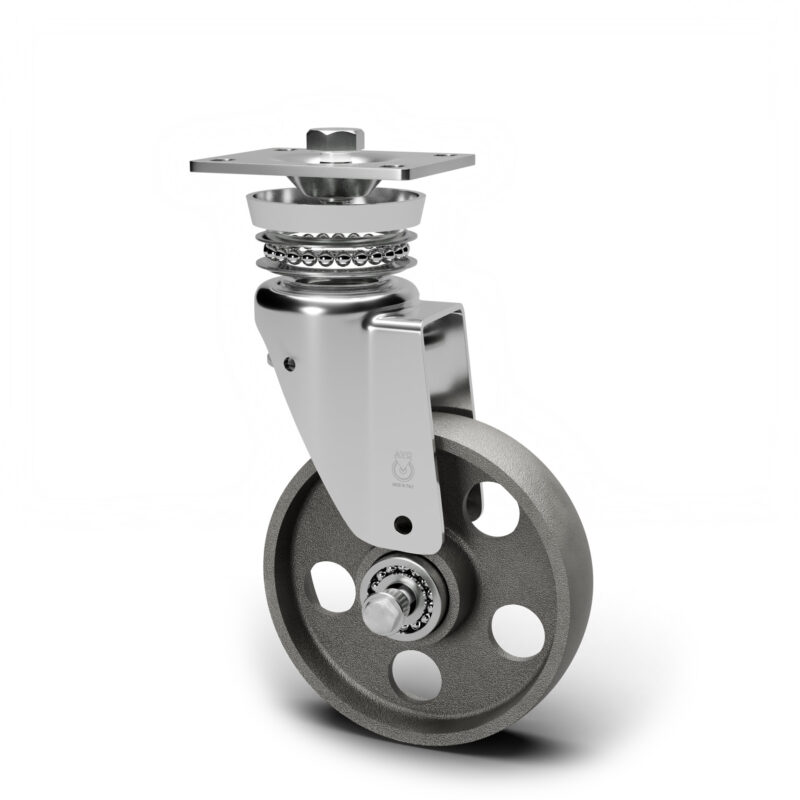

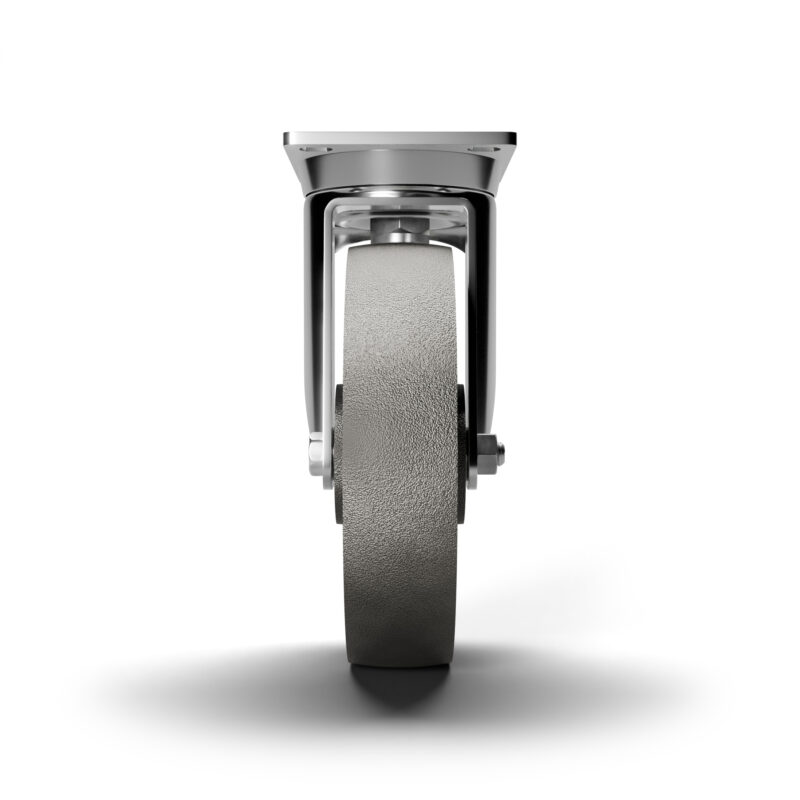

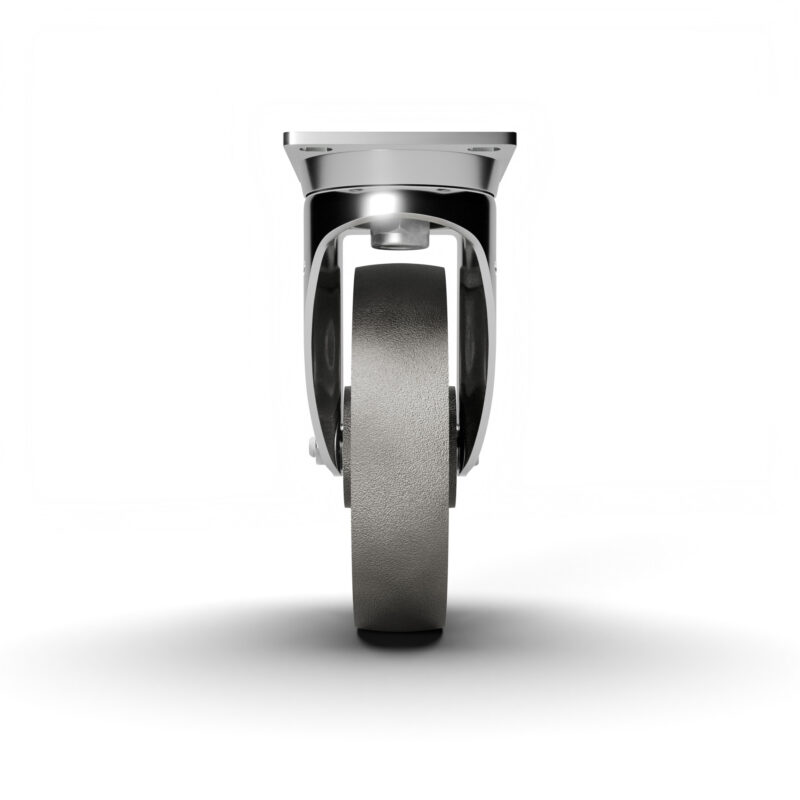

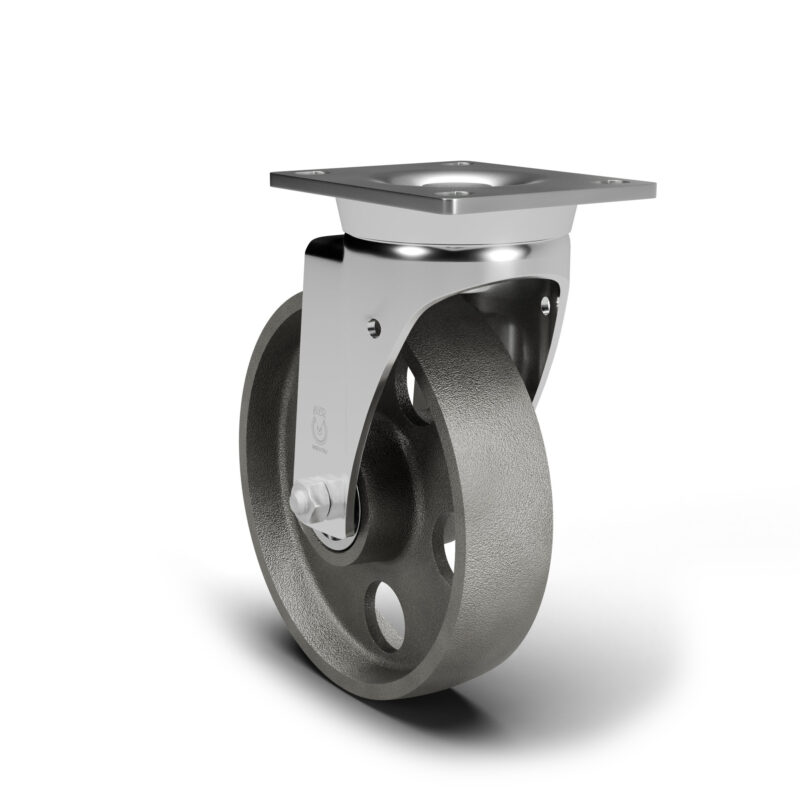

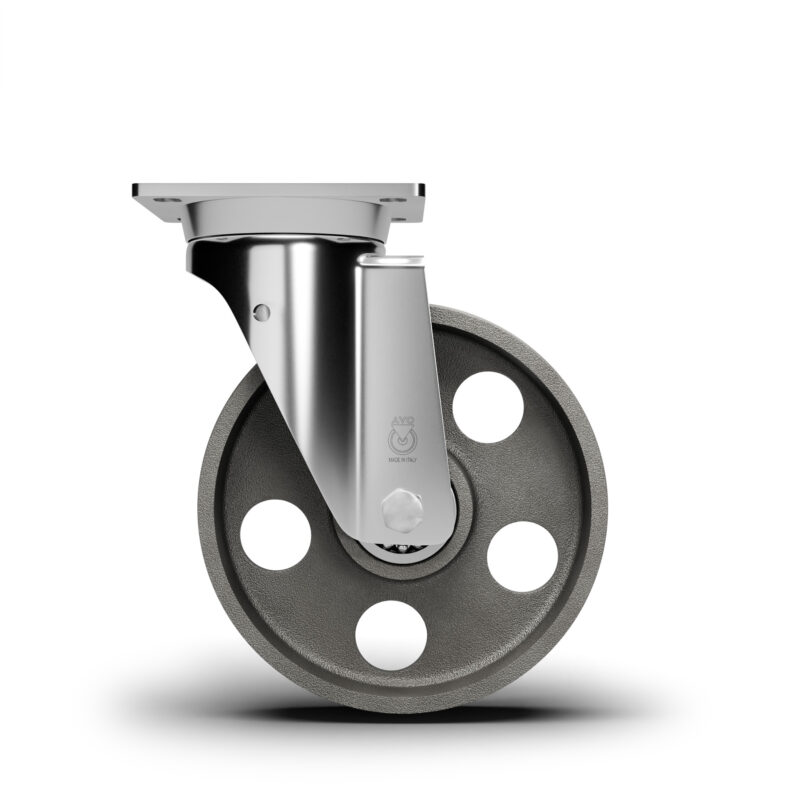

Wheel made of mechanical cast iron, high temperatures resistant with low rolling resistance. Hub on plain bore. Heavy duty castor in zinc-chromium plated pressed steel turning on double rim of balls in temperate thrust bearings. Assembled with self-locking nut.
TECHICAL DESCRIPTION
DESCRIPTION
Wheel made of mechanical cast iron, high temperatures resistant with low rolling resistance. Hub on plain bore. Heavy duty castor in zinc-chromium plated pressed steel turning on double rim of balls in temperate thrust bearings. Assembled with self-locking nut.
