Phone: +30 210 412 9441| Weight |
0 , 884 kg |
|---|---|
| Castor type |
Swivel |
| Fitting Type |
Bolt Hole |
| Wheel Material |
Cast Iron |
| Wheel centre / Rim |
Cast Iron |
| Wheel Diameter |
100mm |
| Thread Width |
30mm |
| Wheel Hole |
12mm |
| Hub Width |
40mm |
| Bolt Hole |
12mm |
| Offset (mm) |
37mm |
| Overall Height |
126mm |
| Load Capacity |
120kg |
| Hardness |
180-220HB |
| Floor condition |
Asphalt , Concrete |
| Temperature Resistance |
-40°C/+500°C |
| Serie |
114 |
| Wheel & Castors |
Castor |
| Inox |
No |
| Unit Weight |
0.884Kg |
| Applications |
Industry , Food Industry , Furniture |
CASTOR Ø250MM SWIVEL AND BRAKE QR
88,81€ ex VAT
CASTOR Ø140MM BOLT HOLE GQL
0,00€ ex VAT
CASTOR Ø100MM BOLT HOLE GQ
0,00€ ex VAT
ΕΠΙΚΟΙΝΩΝΗΣΤΕ ΜΑΖΙ ΜΑΣ

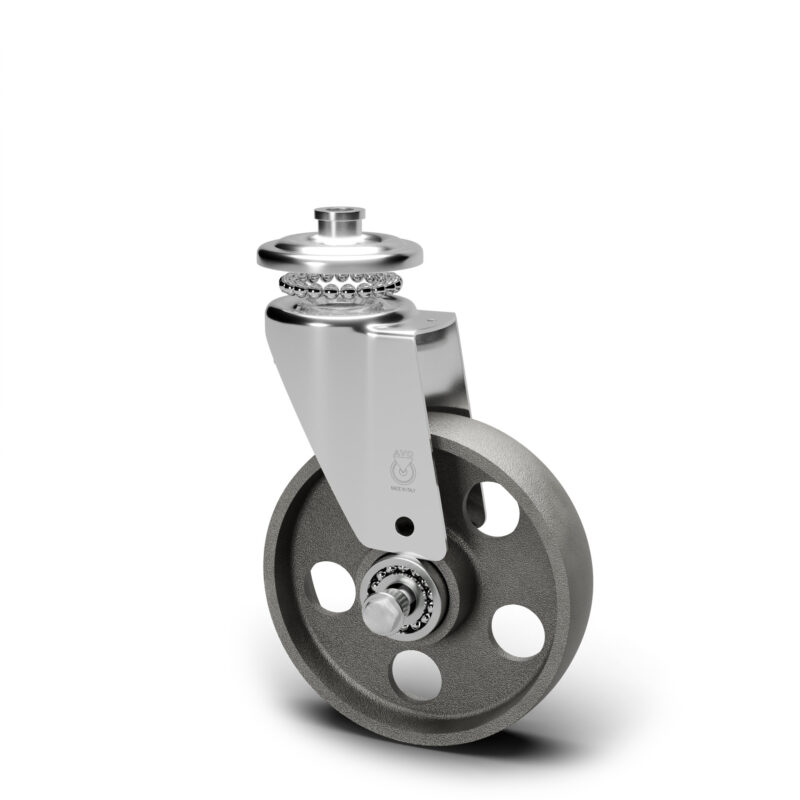

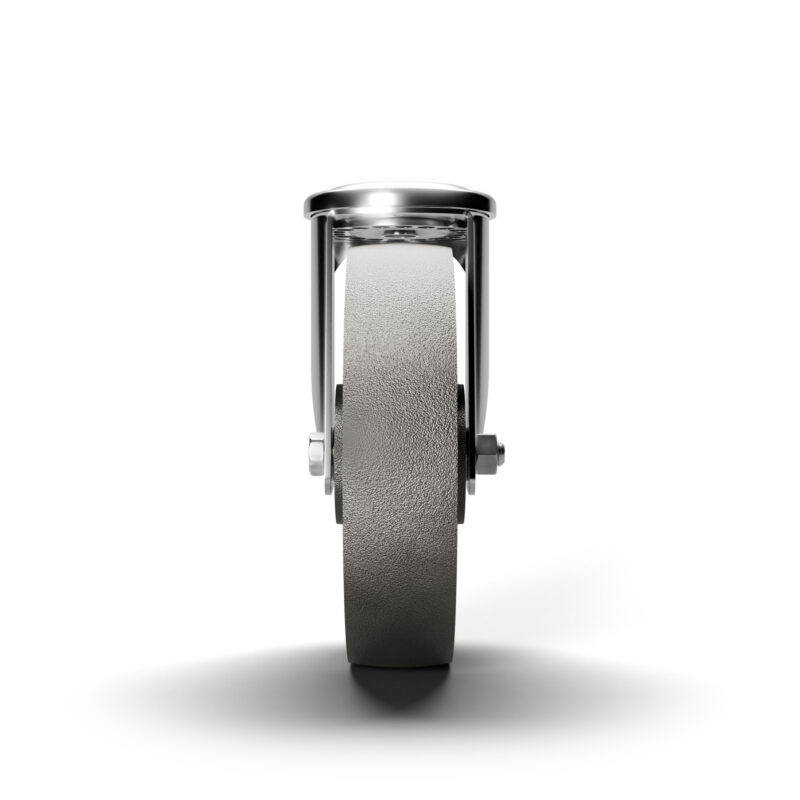

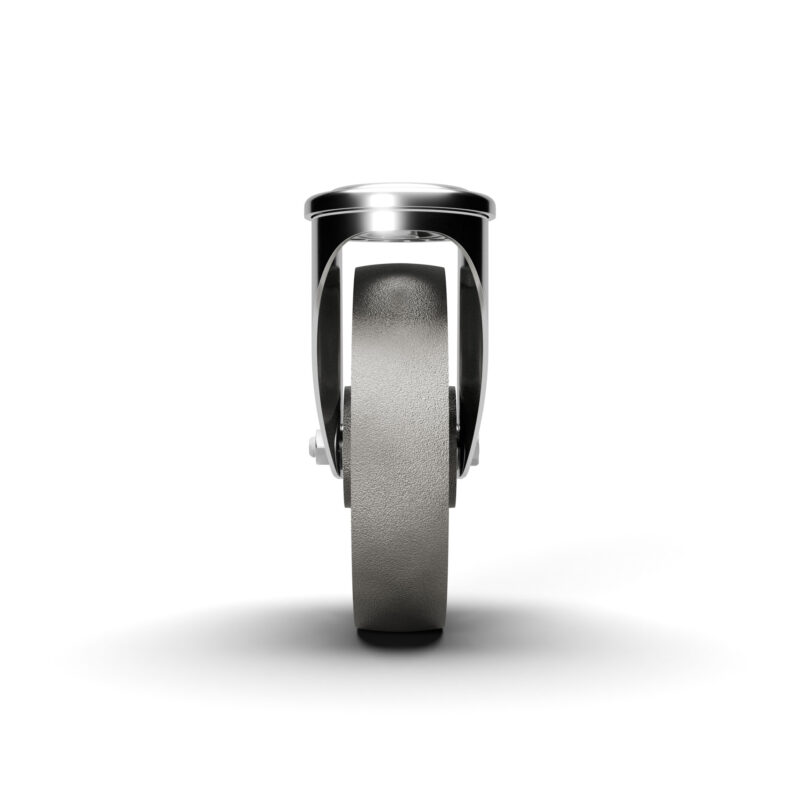

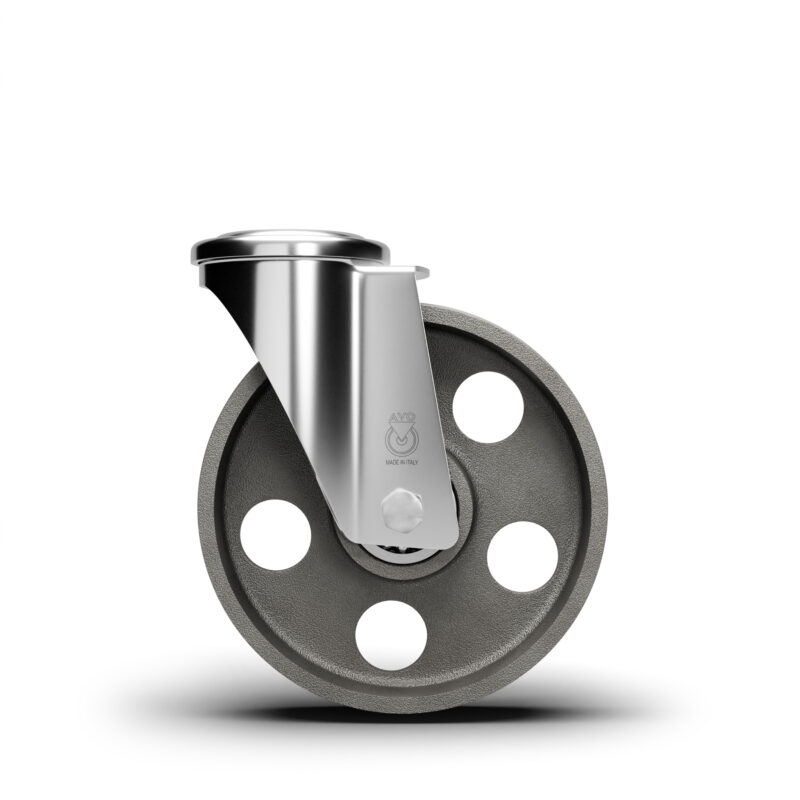

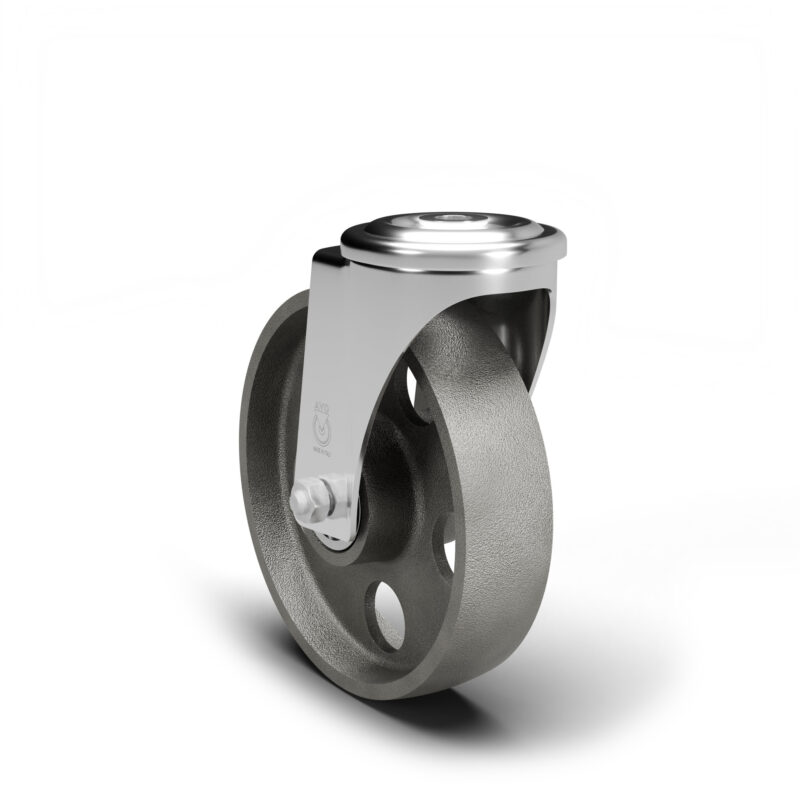

Wheel made of mechanical cast iron, high temperatures resistant with low rolling resistance. Hub on plain bore. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut.
TECHICAL DESCRIPTION
DESCRIPTION
Wheel made of mechanical cast iron, high temperatures resistant with low rolling resistance. Hub on plain bore. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut.
