Phone: +30 210 412 9441| Weight |
1 , 204 kg |
|---|---|
| Castor type |
Swivel |
| Fitting Type |
Plate Fitting |
| Wheel Material |
Rubber |
| Wheel centre / Rim |
Die - Cast Aluminium |
| Wheel Diameter |
100mm |
| Thread Width |
40mm |
| Bearing Type |
Two Ball Bearings |
| Wheel Hole |
15mm |
| Hub Width |
40mm |
| Plate Size |
100mm x 85mm |
| Bolt Hole Spacing |
80mm x 60mm |
| Bolt Hole |
9mm x 12mm |
| Offset (mm) |
36mm |
| Overall Height |
135mm |
| Load Capacity |
160kg |
| Hardness |
Sh A 68° |
| Floor condition |
Asphalt , Carper , Wood , Stoneware , Grid , Concrete |
| Temperature Resistance |
-20°C/+70°C |
| Ball Bearing Seat |
32mm x 0 , 9mm |
| Serie |
16A |
| Wheel & Castors |
Castor |
| Inox |
No |
| Unit Weight |
1.204Kg |
| Applications |
Storage - Logostic - Transpotation , Industry |

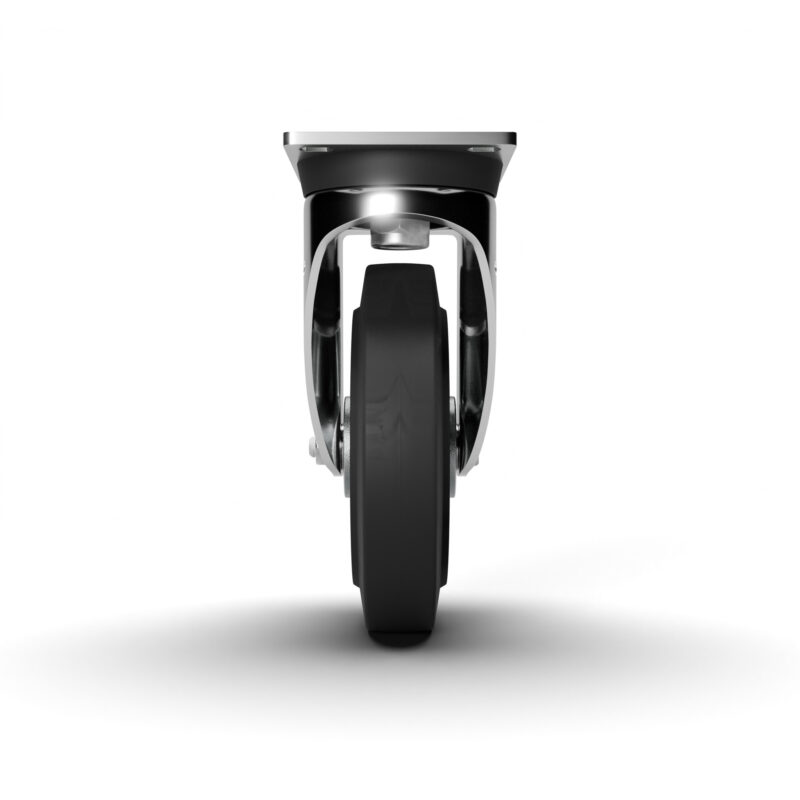

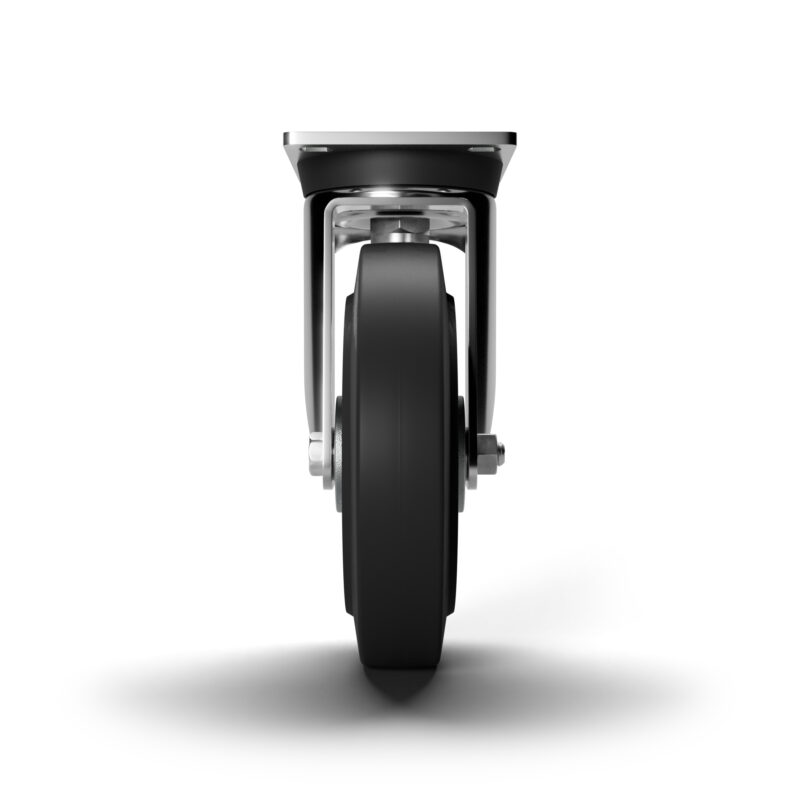

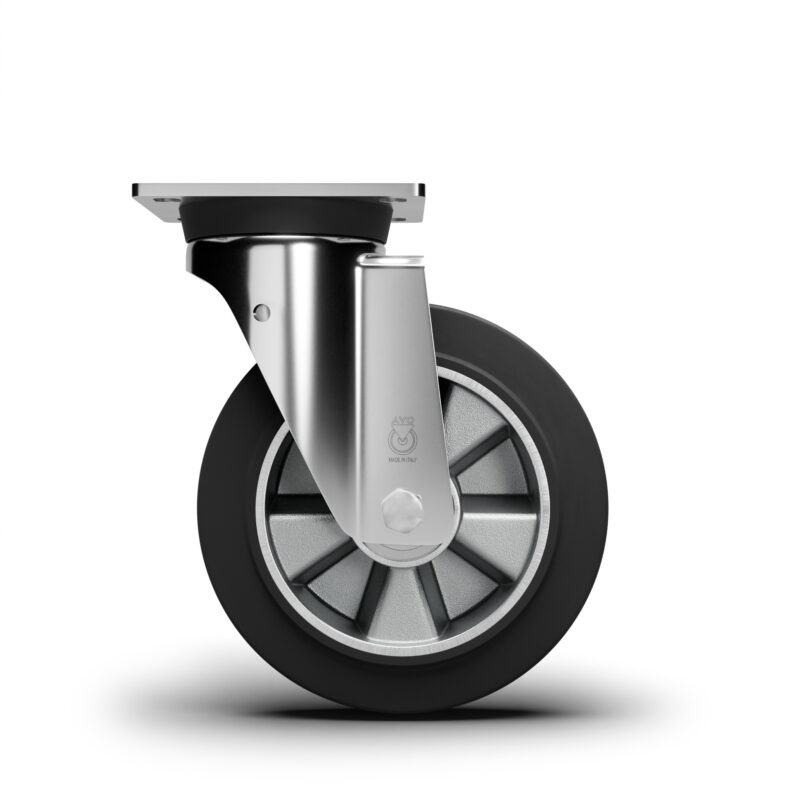

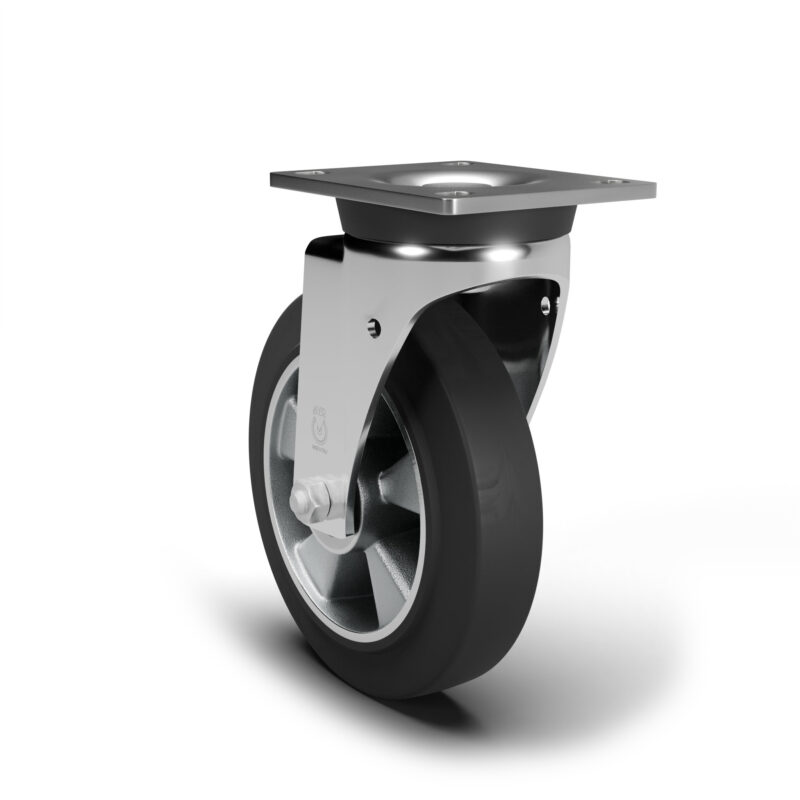

CASTOR Ø100X40MM SWIVEL 2R RUBBER (HD)
35,03€ ex VAT
Wheel coated with heavy duty solid rubber (Soft Elastic), very high operational comfort, low-noise operation, very good floor preservation. Rim of die-cast aluminum. Hub on shielded ball bearings with central spacer. Heavy duty castor in zinc-chromium plated pressed steel turning on double rim of balls in temperate thrust bearings. Assembled with self-locking nut and plastic dust protection.
Σε απόθεμα
Wheel coated with heavy duty solid rubber (Soft Elastic), very high operational comfort, low-noise operation, very good floor preservation. Rim of die-cast aluminum. Hub on shielded ball bearings with central spacer. Heavy duty castor in zinc-chromium plated pressed steel turning on double rim of balls in temperate thrust bearings. Assembled with self-locking nut and plastic dust protection.
