Phone: +30 210 412 9441| Weight |
1 , 49 kg |
|---|---|
| Castor type |
Swivel |
| Fitting Type |
Plate Fitting |
| Wheel Material |
Rubber |
| Wheel centre / Rim |
Zinc - Chromium Plated Pressed Steel Flanges |
| Wheel Diameter |
150mm |
| Thread Width |
40mm |
| Bearing Type |
Roller Bearing |
| Wheel Hole |
15mm |
| Hub Width |
50mm |
| Plate Size |
100mm x 85mm |
| Bolt Hole Spacing |
80mm x 60mm |
| Bolt Hole |
8 , 5mm x 12mm |
| Offset (mm) |
37mm |
| Overall Height |
179mm |
| Load Capacity |
120kg |
| Hardness |
Sh A 80° |
| Floor condition |
Asphalt , Carper , Wood , Stoneware , Grid , Concrete |
| Temperature Resistance |
-20°C/+80°C |
| Serie |
112 |
| Wheel & Castors |
Castor |
| Inox |
No |
| Unit Weight |
1.49Kg |
| Applications |
Storage - Logostic - Transpotation , Industry |
CASTOR Ø150X40MM SWIVEL AND BRAKE (HD) POLYURETHANE
0,00€ ex VAT
CASTOR Ø200MM BOLT HOLE QR
26,74€ ex VAT
CASTOR Ø150MM SWIVEL QRL
12,65€ ex VAT
ΔΙΑΘΕΣΙΜΟ

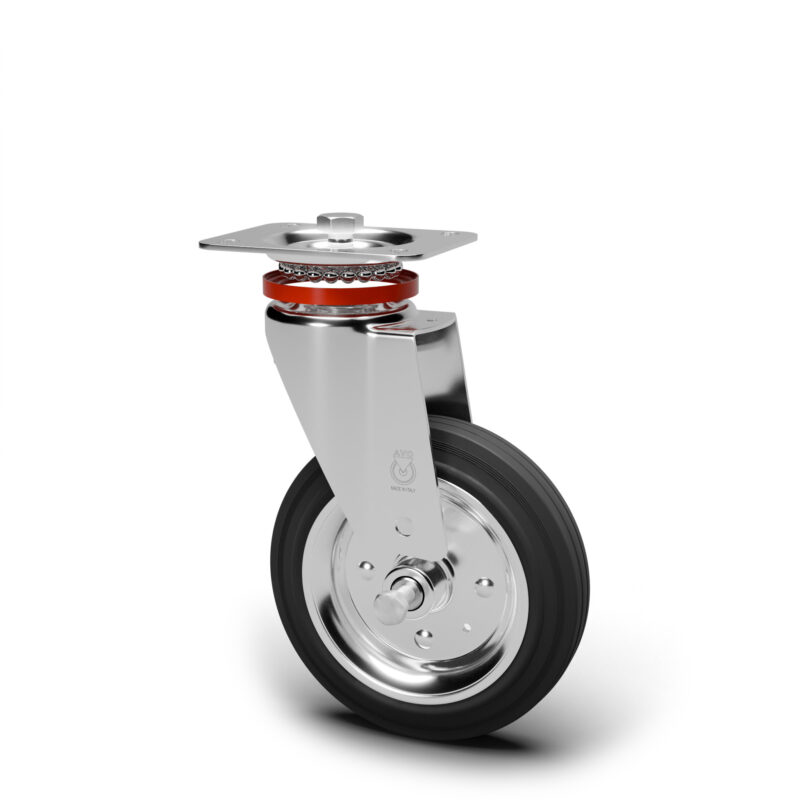

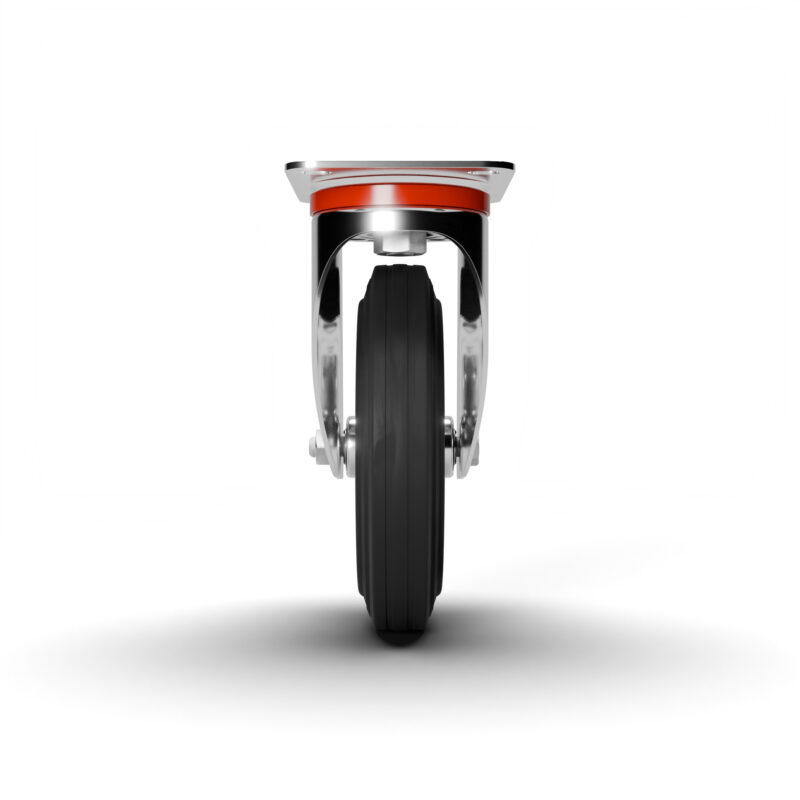

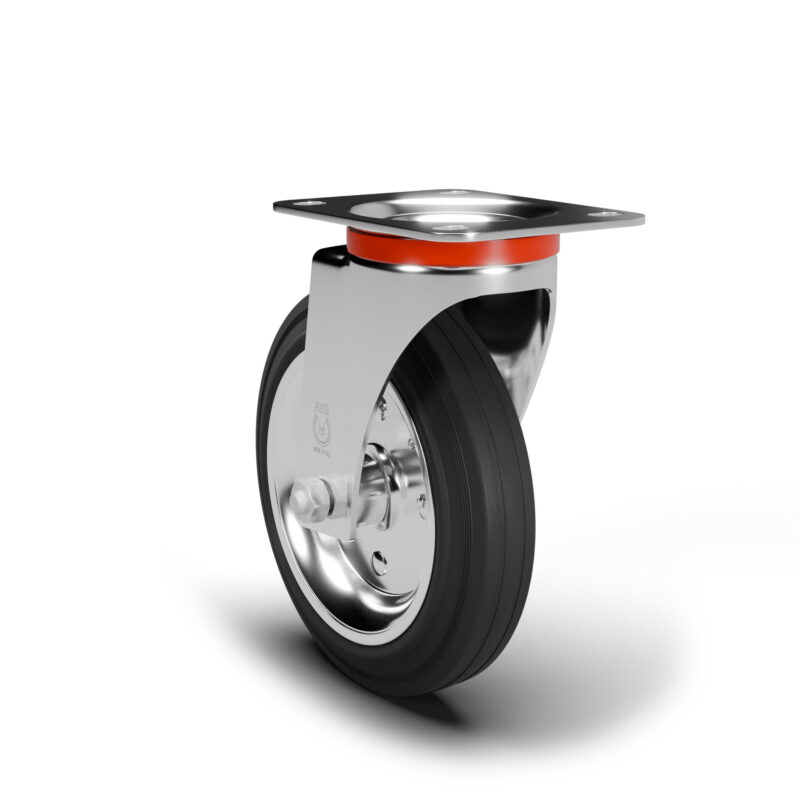

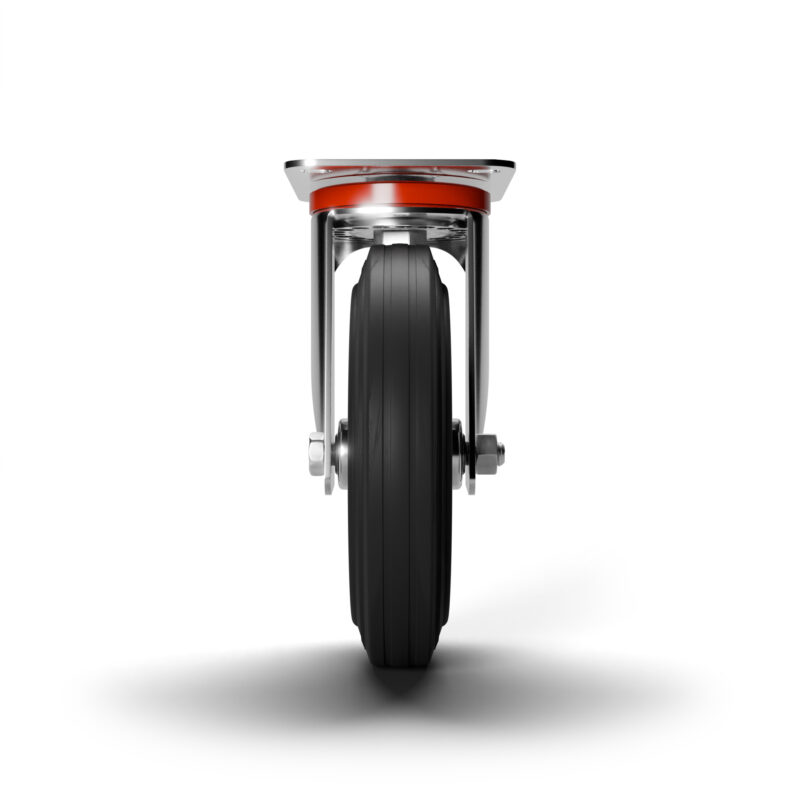

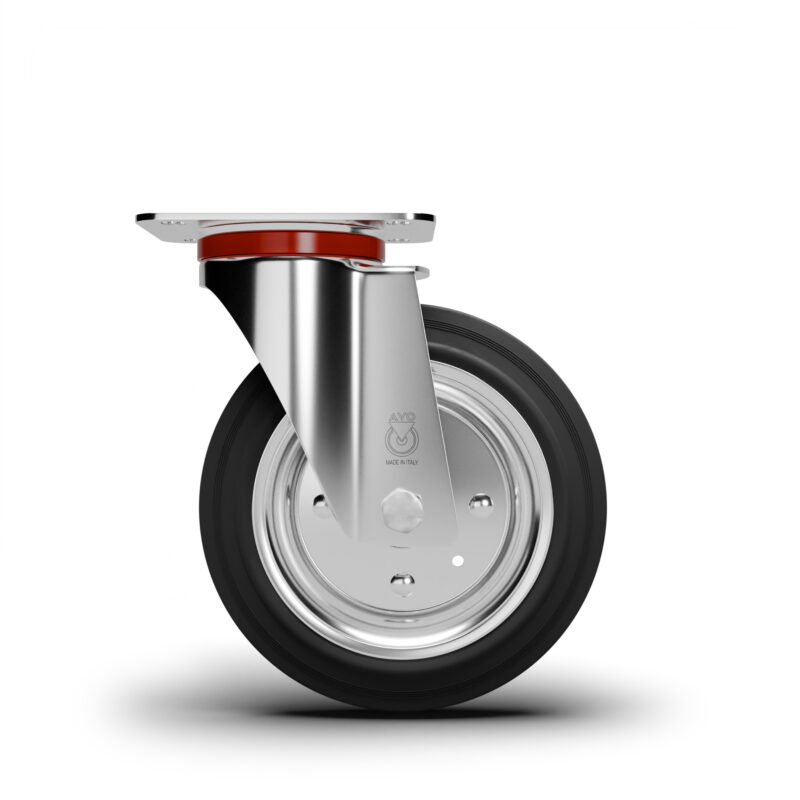

Wheel coated with solid rubber, low-noise operation and very good floor preservation. Rim of zinc-chromium plated pressed steel flanges. Hub on roller bearing. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut and dust protection.
Σε απόθεμα
TECHICAL DESCRIPTION
DESCRIPTION
Wheel coated with solid rubber, low-noise operation and very good floor preservation. Rim of zinc-chromium plated pressed steel flanges. Hub on roller bearing. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut and dust protection.
