Phone: +30 210 412 9441| Weight |
5 , 692 kg |
|---|---|
| Castor type |
Swivel |
| Fitting Type |
Plate Fitting |
| Wheel Material |
Rubber |
| Wheel centre / Rim |
Die - Cast Aluminium |
| Wheel Diameter |
250mm |
| Thread Width |
50mm |
| Bearing Type |
Two Ball Bearings |
| Wheel Hole |
25mm |
| Hub Width |
60mm |
| Plate Size |
200mm x 160mm |
| Bolt Hole Spacing |
150mm x 115mm |
| Bolt Hole |
14mm x 26mm |
| Offset (mm) |
85mm |
| Overall Height |
302mm |
| Load Capacity |
400kg |
| Hardness |
Sh A 68° |
| Floor condition |
Asphalt , Carper , Wood , Stoneware , Grid , Concrete |
| Temperature Resistance |
-20°C/+70°C |
| Ball Bearing Seat |
52mm x 15mm |
| Serie |
16A |
| Wheel & Castors |
Castor |
| Inox |
No |
| Unit Weight |
5.692Kg |
| Applications |
Storage - Logostic - Transpotation , Industry |

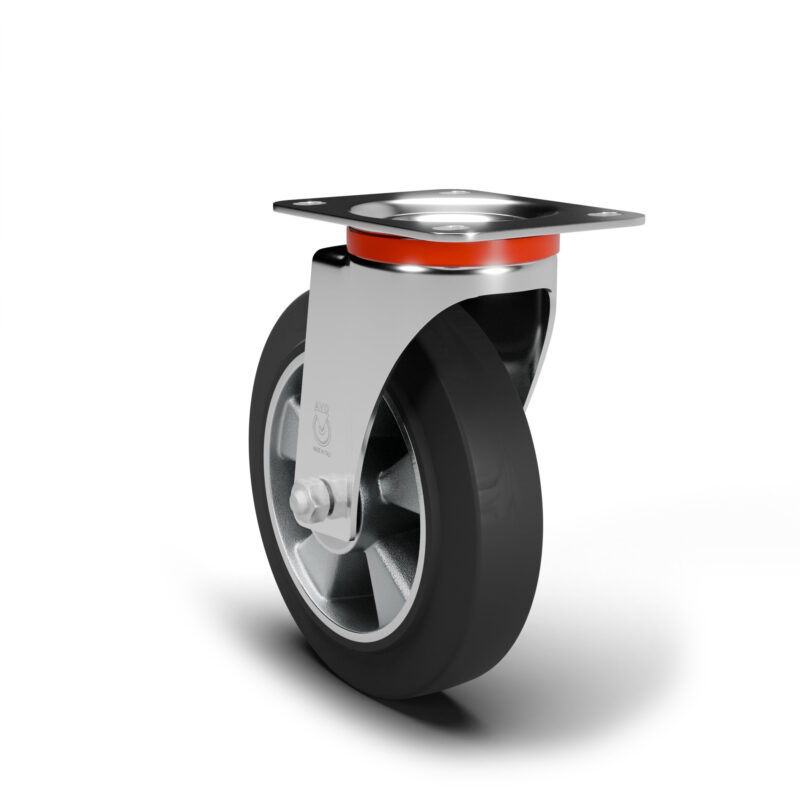

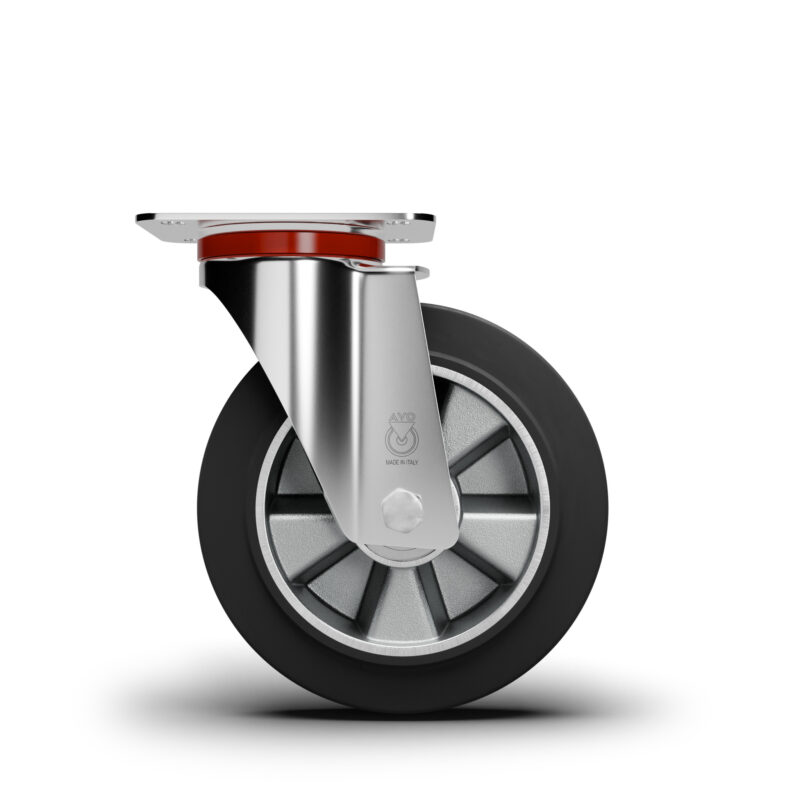

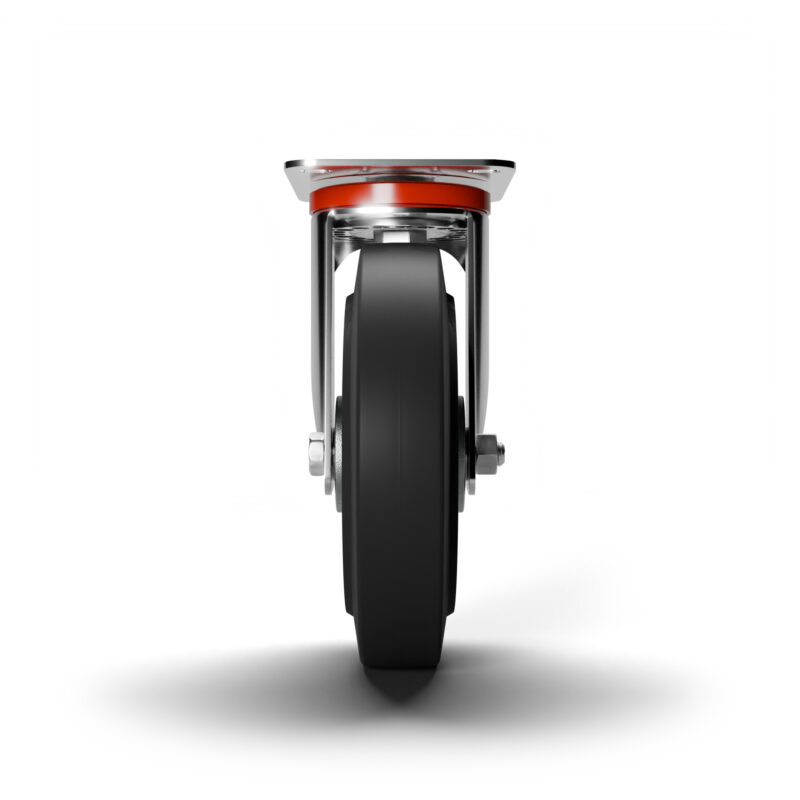

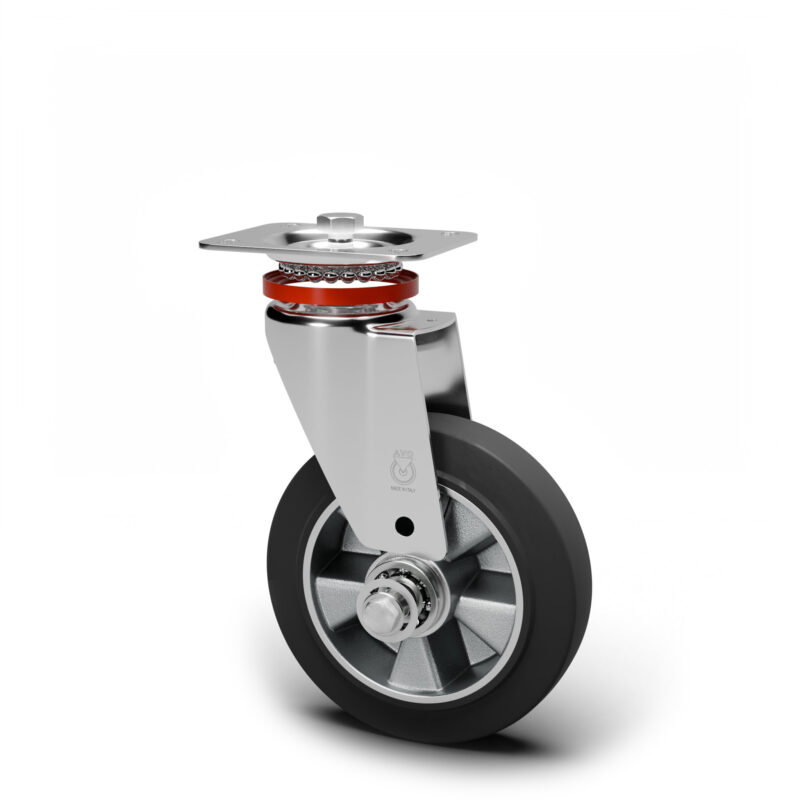

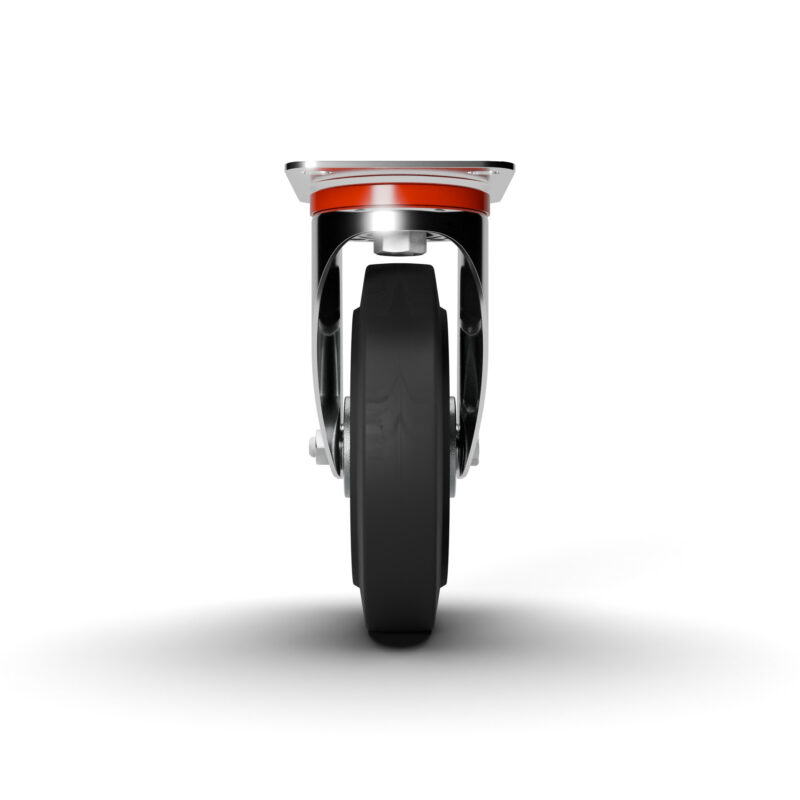

CASTOR Ø250X50MM SWIVEL 2R RUBBER Q
119,07€ ex VAT
Wheel coated with heavy duty solid rubber (Soft Elastic), very high operational comfort, low-noise operation, very good floor preservation. Rim of die-cast aluminum. Hub on shielded ball bearings with central spacer. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut and plastic dust protection.
Σε απόθεμα
Wheel coated with heavy duty solid rubber (Soft Elastic), very high operational comfort, low-noise operation, very good floor preservation. Rim of die-cast aluminum. Hub on shielded ball bearings with central spacer. Medium duty castor in zinc-chromium plated pressed steel turning on double rim of balls. Assembled with self-locking nut and plastic dust protection.
